Wiring Colour Codes


Radio & Electronics Glossary
Resistor Colour Codes
Capacitor Colour Codes
Inductor Colour Codes

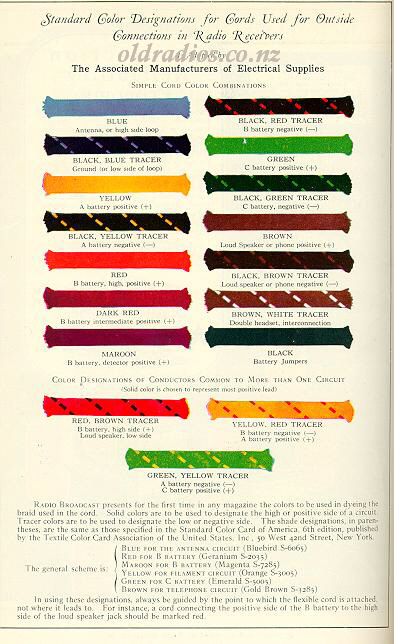

Wiring Loom Colours

Signal Diode Color Codes
Typical Radio Dial Pilot Lamps
VT Tube (Valve) Equivalents
CV Tube (Valve) Equivalents #2
ECU (foreign) to American Cross Reference
New Zealand Radio Spectrum

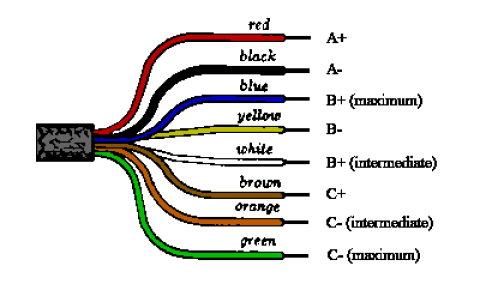

Radio battery cables

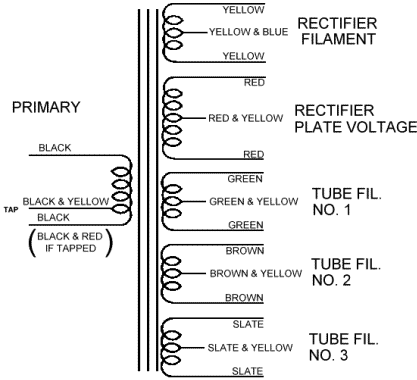

Power Transformers

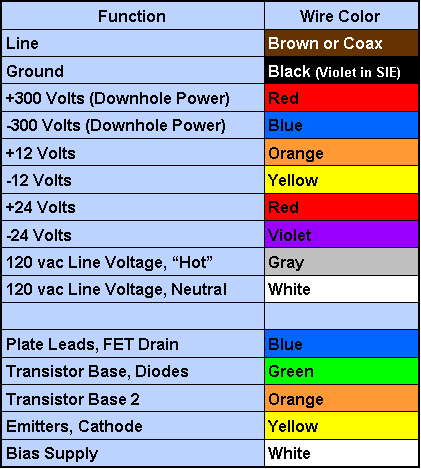

Modern Wiring Semi-Convention

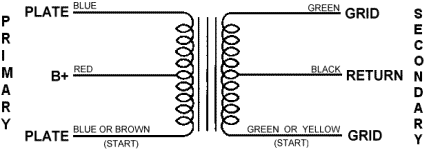

Audio Transformers
