Signal Diode Colour Codes


Radio & Electronics Glossary
Resistor Colour Codes
Capacitor Colour Codes
Inductor Colour Codes
Wiring Loom Colours

Signal Diode Color Codes
Typical Radio Dial Pilot Lamps
VT Tube (Valve) Equivalents
CV Tube (Valve) Equivalents #2
ECU (foreign) to American Cross Reference
New Zealand Radio Spectrum

Color

Suffix Letter
Black
0
-
Brown
1
A
Red
2
B
Orange
3
C
Yellow
4
D
Green
5
E
Blue
6
F
Violet
7
G
Gray
8
H
White
9
J
Silver
-
-
Gold
-
-
None
-
-

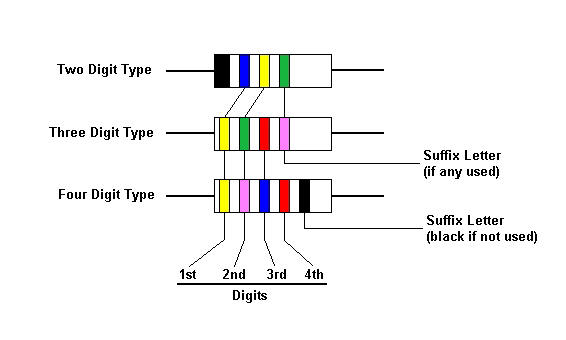

Examples (Using Diodes in chart above)
Top Diode = 1N64E
Middle Diode = 1N452G
Bottom Diode = 1N4762
not all makers adhere to these standard
